Product Description

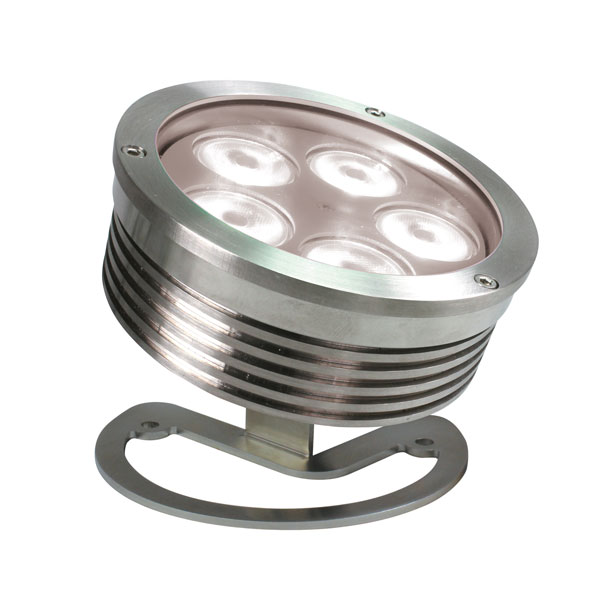

20V-48V version IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. Plug-In version.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
10
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
2500
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
|
| Connections | |
Connectors and cables
|
Main Power: cable 2x1mm 1,5mt
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
Plug-in
|
| Power supply | |
Input range
|
CV 20 - 48 VDC
|
Power (W)
|
16
|
| Physical | |
IP protection rating
|
67
68 optional
|
Materials
|
Ultra clear 10mm tempered glass
All in stainless steel AISI304
|
Mounting systems
|
Surface
Truss (optional)
|
Dimensions d x h (mm)
|
134 x 115
|
Weight (Kgs)
|
2,7
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
| Uncategorized | |
FILTER-SING 105-W (art.900419)
|
No
Yes
|
FILTER-SING 105 (art.900420)
|
No
Yes
|
FILTER-DOUB 105 (art.900421)
|
No
Yes
|
AR-WB long bracket (art.900538)
|
No
Yes
|
PS 10 TERRA-ARIA (art. 550170)
|
No
Yes
|
PS 4 TERRA-ARIA (art.551170)
|
No
Yes
|
PS 1 TERRA-ARIA (art.552170)
|
No
Yes
|
