ARIA L5 24V RGBW RDM (it.215160)

ARIA L5 24V RGBW RDM (it.215160)

https://www.studiodue.com/web/image/product.template/1300/image_1920?unique=5a91a4b

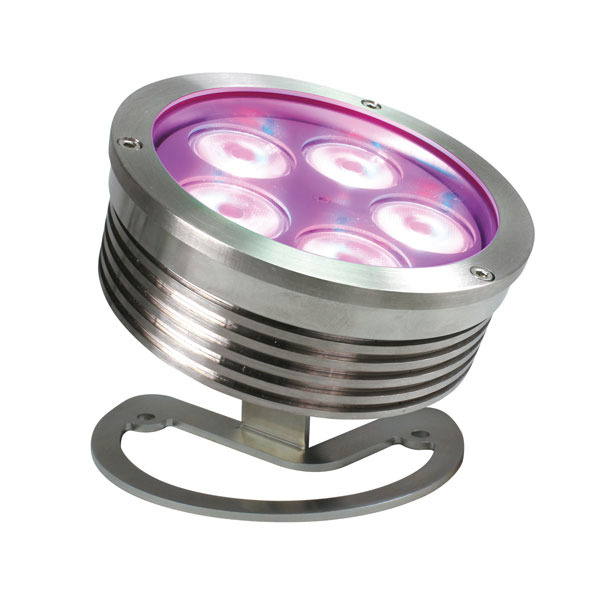

RGBW lighting fixture version 20-48V with DMX on board and external power supply, IP 67, AISI 304 stainless steel with bracket. Suitable for outdoor installations. Features no.5 x 10W RGBW LEDs.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • LED expected lifetime (hrs)
  • LED expected lifetime (hrs)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • IP protection rating
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Materials
  • Case
  • FILTER-SING 105 (art.900420)
  • FILTER-SING 105-W (art.900419)
  • FILTER-DOUB 105 (art.900421)
  • AR-WB long bracket (art.900538)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • PS 1 TERRA-ARIA (art.552170)

This combination does not exist.

Contact Us


RGBW lighting fixture version 20-48V with DMX on board and external power supply, IP 67, AISI 304 stainless steel with bracket. Suitable for outdoor installations. Features no.5 x 10W RGBW LEDs.

Specifications

Lighting source
LED type RGBW5050MULTICHIP
Lumen max source (lm) 1815
Red lumen (lm) 330
LED expected lifetime (hrs) 50000, 50000
Green lumen (lm) 770
Number of LEDs 5
Blu lumen (lm) 110
White lumen (lm) 715
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Filter f65° frost
Connections
Connectors and cables Combo-cable Main Power + DMX signal (2x1mm+3x0,25mm - 1,5mt)
Connettori e cavi (optional) Cable: type and length (optional)
Control
Control type External Power Supply, DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 5ch - 4ch
Power supply
Input range CV 20 - 48 VDC
Power max (W) 18
Physical
IP protection rating 67, 68 optional
Mounting systems Surface, Truss (optional)
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
Weight (Kgs) 2,5
Dimensions d x h (mm) 134 x 115
Product Category Spot
Finishings
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
Others
FILTER-SING 105 (art.900420) No, Yes
FILTER-SING 105-W (art.900419) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
AR-WB long bracket (art.900538) No, Yes
PS 10 TERRA-ARIA (art. 550170) No, Yes
PS 4 TERRA-ARIA (art.551170) No, Yes
PS 1 TERRA-ARIA (art.552170) No, Yes
