ARCHILED 200 RGBWA (it.170110)

https://www.studiodue.com/web/image/product.template/117/image_1920?unique=e89c113

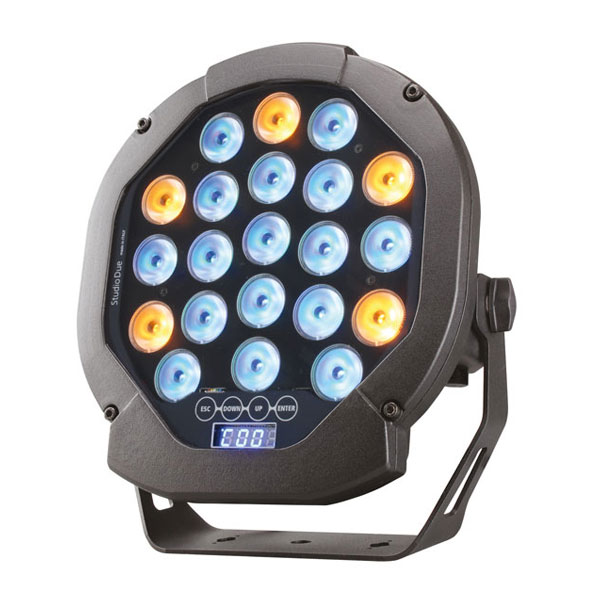

Hi Power wash LED light color changer. 16 RGBW LEDs + 10 Amber LEDs, with touch control panel. IP 67 protection rating.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Amber lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • Tilt
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • AL200-BD (art.900111)
  • ARCHILED CASEx4 (art. a richiesta) Flight Case
  • ARCHILED CASEx6 (art. a richiesta) Flight Case
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)
  • AL200-AG (art.900013)

This combination does not exist.

LED type RGBWA
Number of LEDs 26
LED expected lifetime (hrs) 50000
Lumen max source (lm) 6800
Red lumen (lm) 1300
Green lumen (lm) 3000
Blu lumen (lm) 400
White lumen (lm) 2500
Amber lumen (lm) 1300
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 10ch - 7ch - 6ch - 5ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 80
Current 0,35A@230VAC
Inrush current 50A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 135°
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 270 x 100 x 303
Weight (Kgs) 4,9
Product Category Spot
AL200-BD (art.900111) No, Yes
ARCHILED CASEx4 (art. a richiesta) Flight Case No, Yes
ARCHILED CASEx6 (art. a richiesta) Flight Case No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
AL200-AG (art.900013) No, Yes
