ARCHILED 200 M (it.170430)

ARCHILED 200 M (it.170430)

https://www.studiodue.com/web/image/product.template/223/image_1920?unique=984152c

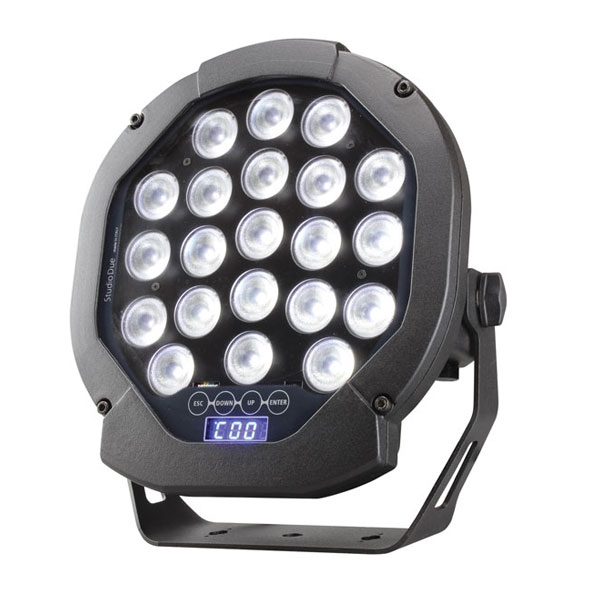

Hi Power wash LED Monochromatic fixture. 42 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. Touch control panel. IP 67 protection rating. Dimmable version RDM-DRS.


Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Tilt
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • AL200-BD (art.900111)
  • AL200-AG (art.900013)
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)
  • ARCHILED CASEx4 (art. a richiesta) Flight Case
  • ARCHILED CASEx6 (art. a richiesta) Flight Case

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Lumen max source (lm) 9000
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 3ch - 1ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 75
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 135°
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 270 x 100 x 303
Weight (Kgs) 5
Product Category Spot
AL200-BD (art.900111) No, Yes
AL200-AG (art.900013) No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
ARCHILED CASEx4 (art. a richiesta) Flight Case No, Yes
ARCHILED CASEx6 (art. a richiesta) Flight Case No, Yes
