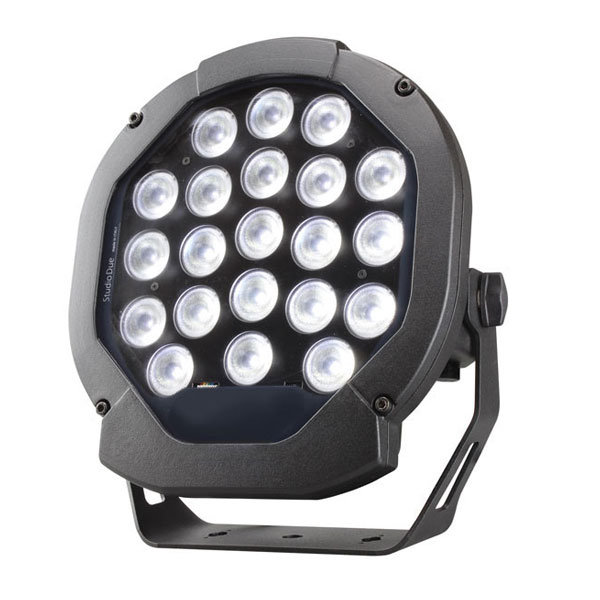

ARCHILED 200 M DALI (it.170420)
Hi Power wash LED Monochromatic fixture. 42 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. IP 67 protection rating. DALI version.
Documents
Hi Power wash LED Monochromatic fixture. 42 Hi-Power warm, neutral or cool white LEDs. On request: red, green, blue or amber. IP 67 protection rating. DALI version.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 9000 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DALI DT6 |
| Functions and Setup | |
|---|---|
| Setup | DALI |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 75 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Tilt | 135° |
| IP protection rating | 67 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 270 x 100 x 303 |
| Weight (Kgs) | 5 |
| Product Category | Spot |
| Others | |
|---|---|
| ARCHILED CASEx4 (art. a richiesta) Flight Case | No, Yes |
| ARCHILED CASEx6 (art. a richiesta) Flight Case | No, Yes |
| AL200-AG (art.900013) | No, Yes |
| AL200-BD (art.900111) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
