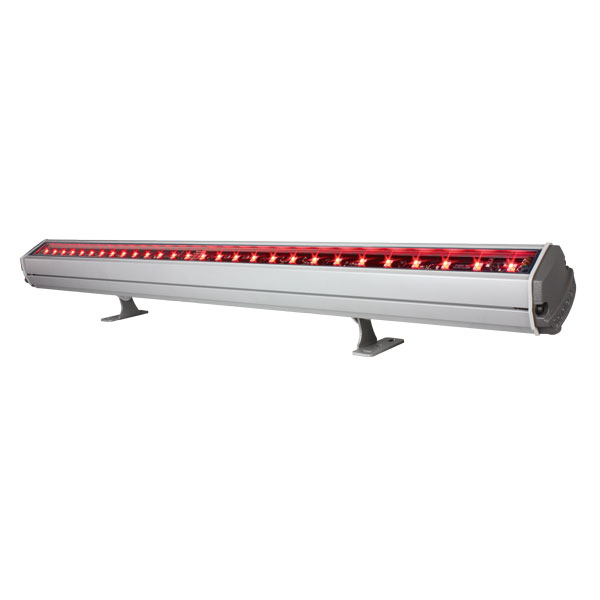

ARCHIBAR ST80 RGBW 100cm (it.174015)

ARCHIBAR ST80 RGBW 100cm (it.174015)

https://www.studiodue.com/web/image/product.template/50/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 112
Lumen max source (lm) 2710
Red lumen (lm) 460
Green lumen (lm) 950
Blu lumen (lm) 260
White lumen (lm) 1300 (Cool White)
Lenses 120° beam
Control type DMX - RDM
Functions RDM/DRS
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 40
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 1004 x 93 x 115
Weight (Kgs) 3,5 kg
Product Category Linear Bar
