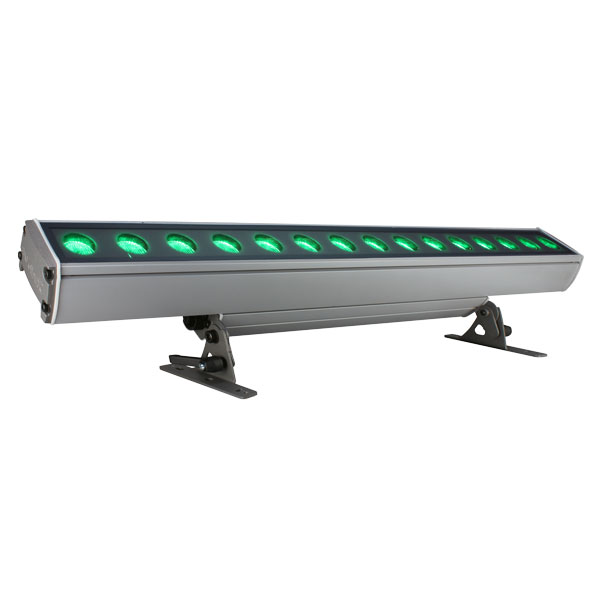

ARCHIBAR SL250 RGBW 90cm (it.220514)
Powerful RGBW LED linear bar 90 cm longwith 15 LEDs. 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Documents
Powerful RGBW LED linear bar 90 cm longwith 15 LEDs. 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Lumen max source (lm) | 10000 |
| Red lumen (lm) | 2050 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 3650 |
| Number of LEDs | 15 |
| Blu lumen (lm) | 630 |
| White lumen (lm) | 3950 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3pin IP67 connector (male-female), DMX signal: 4pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS + touch control panel, Wireless DMX receiver |
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + touch control panel |
| DMX channels | 9ch - 5ch - 4ch |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 115 |
| Current | 0,5A@230VAC |
| Inrush current | 60A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| IP protection rating | 67 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 925 x 163 x 160 |
| Weight (Kgs) | 6,7 |
| Product Category | Linear Bar |
