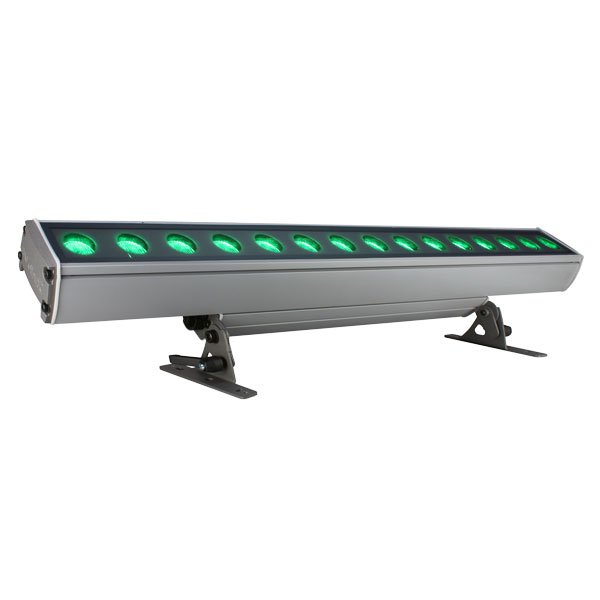

ARCHIBAR SL250 RGBW 120cm (it.220516)

ARCHIBAR SL250 RGBW 120cm (it.220516)

https://www.studiodue.com/web/image/product.template/1516/image_1920?unique=5a91a4b

Powerful RGBW LED linear bar 120 cm long. 38 mm lenses. IP 67 protection rating. Standard 90 cm


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 20
LED expected lifetime (hrs) 50000
Lumen max source (lm) 13200
Red lumen (lm) 2700
Green lumen (lm) 4900
Blu lumen (lm) 840
White lumen (lm) 5300
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 9ch - 5ch - 4ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 150
Current 0,7A@230V
Inrush current 60A@230V
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 1222 x 163 x 160
Weight (Kgs) 8,6
Product Category Linear Bar
