Product Description

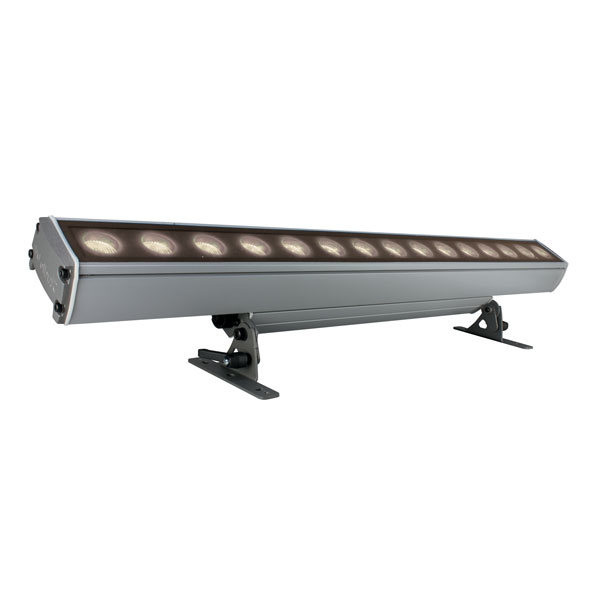

White balance LED linear bar 90 cm long (standard). 15 warm + 15 cool white LEDs. 38 mm lenses. IP 67 protection rating.

Downloads
Technical specification
LED type
CW+WW (5W)
Number of LEDs
15 (2700K) + 15 (6500K)
Lumen MAX
12000
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 80°
f 100°
f 8°x 60°
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless
Protocol USITT DMX512 - RDM + Wireless (on request)
DMX - RDM + DALI
Functions
RDM/DRS
RDM/DRS + touch control panel
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
100
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Marine Grade treatment
None
Yes
IP protection rating
67
Sizes l x p x h (mm)
925 x 163 x 160
Weight (Kgs)
6
