Descrizione prodotto

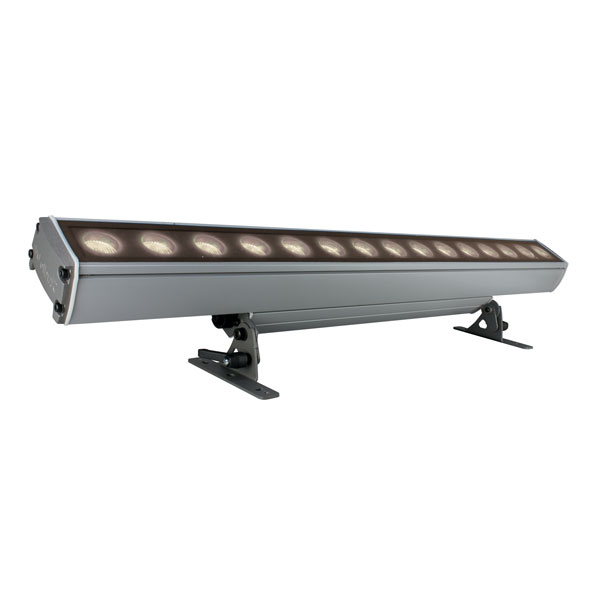

White Balance LED linear bar 120 cm long (on request). 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Downloads
Specifiche tecniche
| Lighting source | |
|---|---|
LED type
|
CW+WW (5W)
|
Number of LEDs
|
20 (2700K) + 20 (6500K)
|
Lumen MAX
|
16000
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
Diffuser filter on request: indicate a required value (X° - Y°)
None
|
| Control | |
Control type
|
External Control Driver
DMX - RDM
DMX - RDM + Wireless (on request)
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
|
| Functions and Setup | |
Functions
|
RDM/DRS
RDM/DRS + touch control panel
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
135
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1222 x 163 x 160
|
Weight (Kgs)
|
8,2
|
