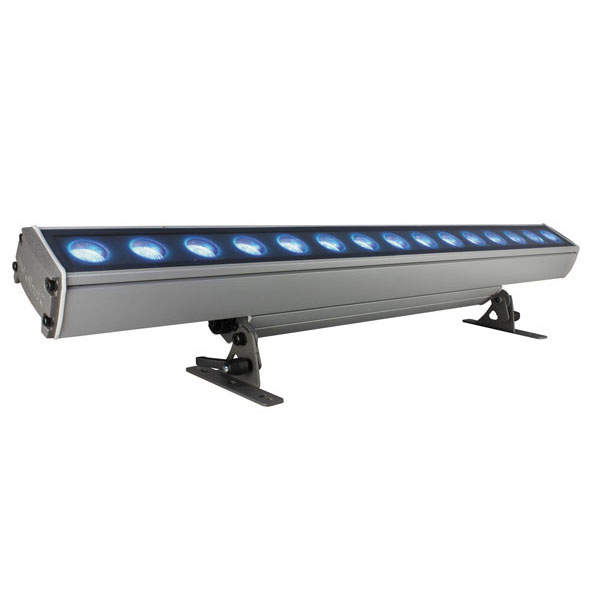

ARCHIBAR SL200 RGBW FC 120cm (it.151816)

ARCHIBAR SL200 RGBW FC 120cm (it.151816)

https://www.studiodue.com/web/image/product.template/72/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 20
LED expected lifetime (hrs) 50000
Lumen max source (lm) 11340
Red lumen (lm) 2340
Green lumen (lm) 4600
Blu lumen (lm) 680
White lumen (lm) 4400
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters None, f 60°, f 100°, f 8°x 60°
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS + touch control panel, Wireless DMX receiver
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 140
Inrush current 50A@230V
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 1222 x 163 x 160
Weight (Kgs) 8,6
Product Category Linear Bar
