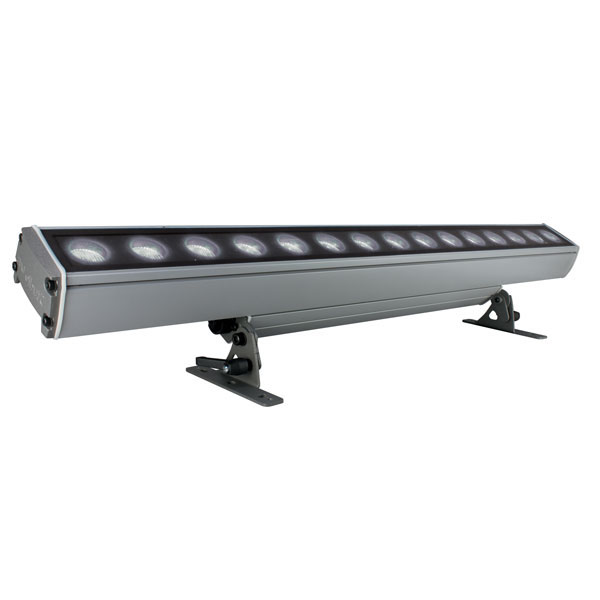

ARCHIBAR SL200 M 150cm (it. 151847)
Monochromatic LED linear bar 150 cm (on request). 38 mm lenses. IP 67 protection rating. Dimmable version RDM-DRS. Standard 90 cm.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 50 |
| Lumen source (lm) | 20000 |
| Optics | |
|---|---|
| Lenses | 10°x30°, 10°x50°, 15°, 25°, 40°, 60° |
| Filters (optional) | No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 168 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional), White RAL 9010 (optional) |
| Sizes l x p x h (mm) | 1517 x 163 x 160 |
| Weight (Kgs) | 9,9 |
| Product Category | Linear Bar |
| IP protection rating | 67 |
| Optional/Accessories | |
|---|---|
| _MARINE GRADE TREATMENT (art.900546) | -, Marine grade treatment |
