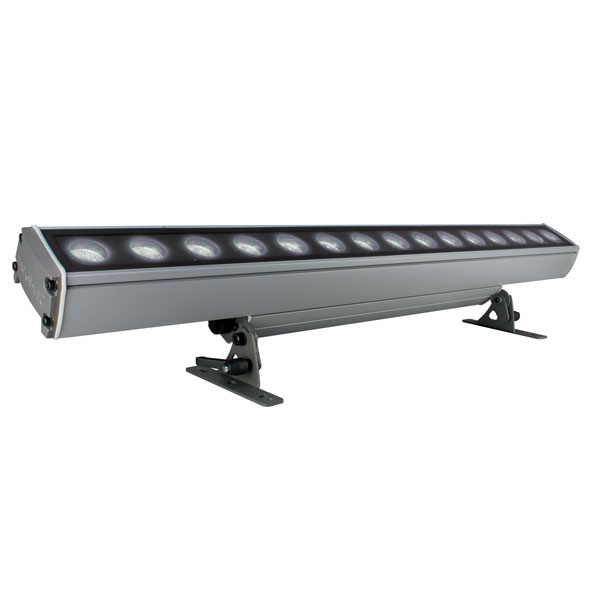

ARCHIBAR SL200 M 120cm (it.151846)
Monochromatic LED linear bar 120 cm (on request). 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Monochromatic LED linear bar 120 cm (on request). 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 16000 |
| Number of LEDs | 40 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 135 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1 |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 1222 x 163 x 160 |
| Weight (Kgs) | 8,2 |
| Product Category | Linear Bar |
