ARCHIBAR SL160 WB 60cm (it.235313)

ARCHIBAR SL160 WB 60cm (it.235313)

https://www.studiodue.com/web/image/product.template/3326/image_1920?unique=5a91a4b

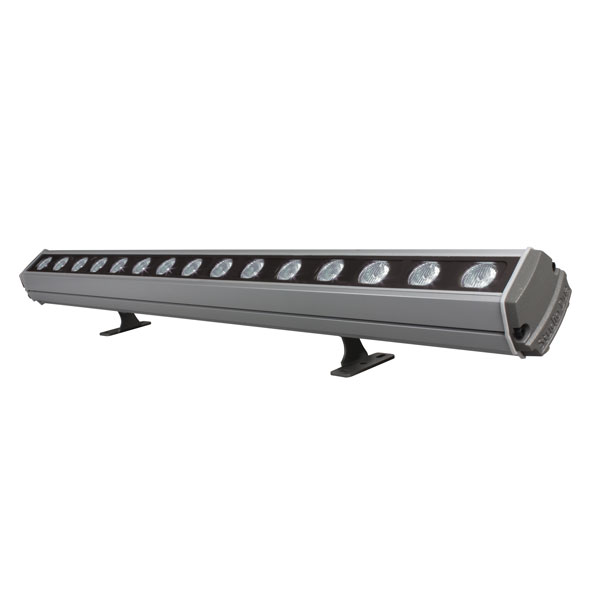

60 cm long linear bar with n.10 warm + n.10 cool White LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 10 (2700K) + 10 (6500K)
Lumen max source (lm) 5000
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H05 0,6mt + IP67 3pin M19 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request), DALI DT8
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 4ch - 2ch - 1ch
Input range 180 - 260 VAC; 47/63 Hz
Power max (W) 36
Current 0,15A@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
IK grade protection 07
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 664 x 93 x 115 mm
Weight (Kgs) xxx 1
Product Category Linear Bar
Contact Us


60 cm long linear bar with n.10 warm + n.10 cool White LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.
