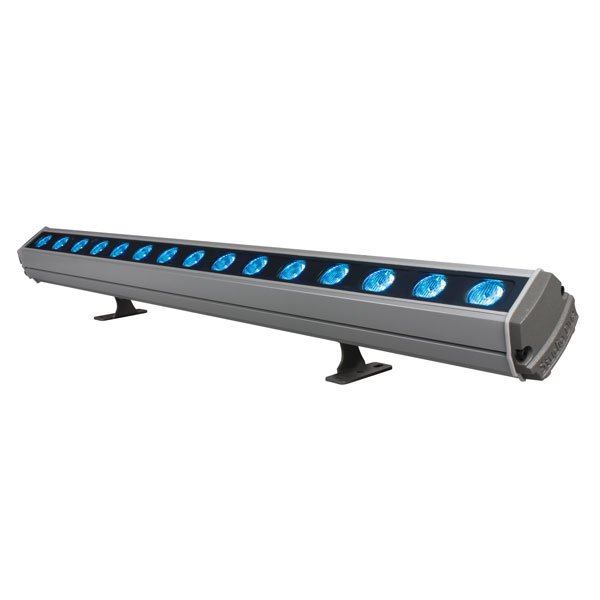

ARCHIBAR SL160 RGBW 90cm (it.235114)
90 cm long linear bar with n.15 RGBW LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.
90 cm long linear bar with n.15 RGBW LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW TX-5050-10W |
| Lumen max source (lm) | 6900 |
| Red lumen (lm) | 1500 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 2700 |
| Number of LEDs | 15 |
| Blu lumen (lm) | 420 |
| White lumen (lm) | 2700 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 0,6mt + IP67 3pin M19 connector (male-female), DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 9ch - 6ch - 5ch - 4ch |
| Power supply | |
|---|---|
| Input range | 180 - 260 VAC; 47/63 Hz |
| Power max (W) | 65 |
| Current | 0,28A@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Operating temperature | -20°C +40*C |
| Sizes l x p x h (mm) | 944 x 93 x 115 mm |
| Weight (Kgs) | 4,4 |
| Product Category | Linear Bar |
