ARCHIBAR SL160 M PLUG-IN 90cm (it.235004)

ARCHIBAR SL160 M PLUG-IN 90cm (it.235004)

https://www.studiodue.com/web/image/product.template/3357/image_1920?unique=5a91a4b

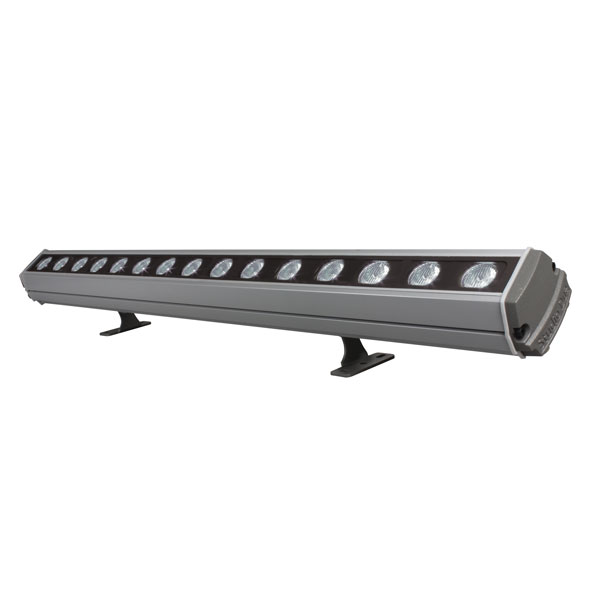

90 cm long linear bar with n.15 Monochromatic LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. Plug-in version. Daisy chain.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 15
Lumen max source (lm) 7500
Lenses 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H05 0,6mt + IP67 3pin M19 connector (male-female)
Control type Plug-in
Functions N/A
Input range 180 - 260 VAC; 47/63 Hz
Power max (W) 55
Current 0,23A@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
IK grade protection 07
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 944 x 93 x 115 mm
Weight (Kgs) 3,8
Product Category Linear Bar
Contact Us


90 cm long linear bar with n.15 Monochromatic LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. Plug-in version. Daisy chain.
