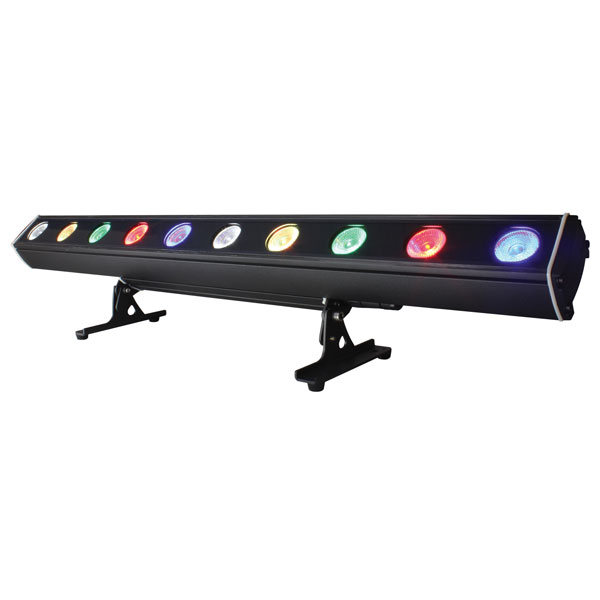

ARCHIBAR IC RGBW 100 cm (it. 172015)

ARCHIBAR IC RGBW 100 cm (it. 172015)

https://www.studiodue.com/web/image/product.template/55/image_1920?unique=5a91a4b



Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type RGBW5050MULTICHIP
Number of LEDs 10
Lumen max source (lm) 4550
Red lumen (lm) 800
Green lumen (lm) 1900
Blu lumen (lm) 300
White lumen (lm) 1850
Optics
Lenses Narrow, Medium, Wide, Ultra Narrow, 10°x60°
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 110
Physical
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1
IP protection rating 67
Sizes l x p x h (mm) 1012 x 163 x 185
Weight (Kgs) 7,3
Product Category Linear Bar
