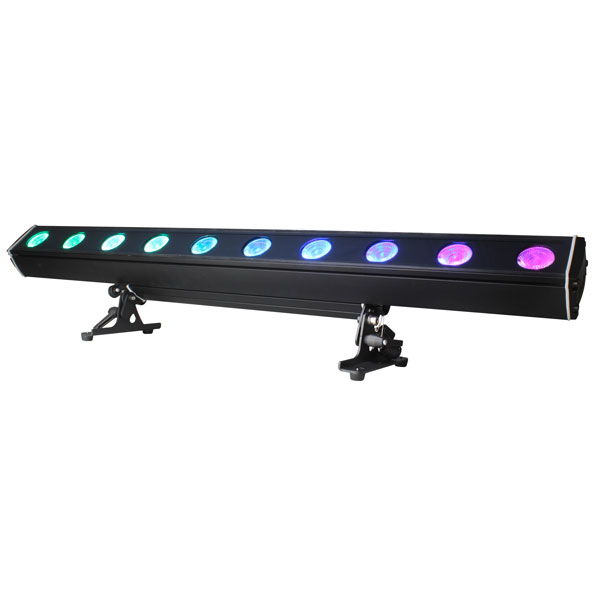

ARCHIBAR IC LV RGBW 100cm (it. 172165)

ARCHIBAR IC LV RGBW 100cm (it. 172165)

https://www.studiodue.com/web/image/product.template/261/image_1920?unique=5a91a4b


Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing

This combination does not exist.

Contact Us



Specifications

Lighting source
LED type RGBW5050MULTICHIP
Lumen max source (lm) 4550
Red lumen (lm) 800
Green lumen (lm) 1900
Number of LEDs 10
Blu lumen (lm) 300
White lumen (lm) 1850
Optics
Lenses Narrow, Medium, Wide, Ultra Narrow, 10°x60°
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions RDM/DRS
Power supply
Input range CV 48 VDC
Power max (W) 100
Physical
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1
IP protection rating 67
Sizes l x p x h (mm) 1012 x 163 x 185
Weight (Kgs) xxx
Product Category Linear Bar
