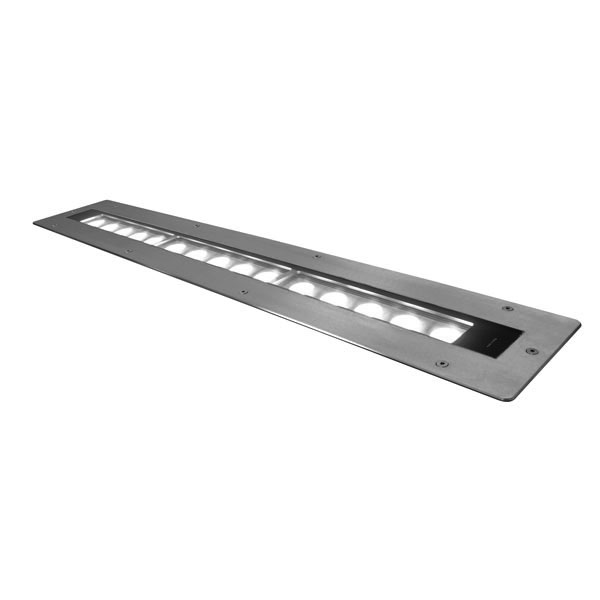

ARCHIBAR-i SL160 WB 90cm (it.236314)
White balance IP 67 inground LED linear bar 90 cm long (standard). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. n.15 (2700K) +n. 15 (6500K) white LEDs. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
| LED type | CW+WW (5W) |
| Number of LEDs | 15 (2700K) + 15 (6500K) |
| Lumen max source (lm) | 7500 |
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connectors and cables | Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends |
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request), DALI DT8 |
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 4ch - 2ch - 1ch |
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 55 |
| Current | 0,23A@230VAC |
| Materials | Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange |
| Marine Grade treatment | None, Yes |
| Tilt | Manual 0° 3° 6° |
| IP protection rating | 67 |
| IK grade protection | 10 |
| Operating temperature | -20°C +40*C |
| Sizes l x p x h (mm) | 1063x182x173 mm |
| Weight (Kgs) | 10 |
| Mounting systems | Inground |
| Colour finishing | None |
| Product Category | Inground |
White balance IP 67 inground LED linear bar 90 cm long (standard). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. n.15 (2700K) +n. 15 (6500K) white LEDs. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
