Product Description

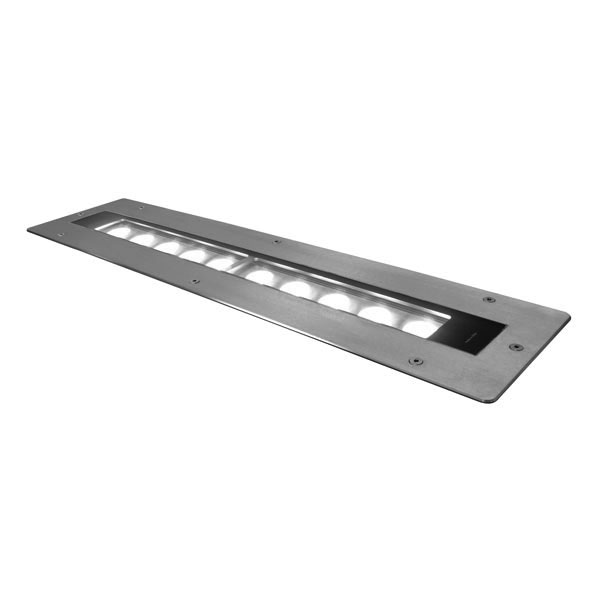

White Balance IP 67 inground LED linear bar 60 cm long (on request). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Downloads

UM_AB SL160-i_inground_all.pdf
Technical specification
LED type
CW+WW (5W)
Number of LEDs
10 (2700K) + 10 (6500K)
Lumen MAX
5000
Lenses
10°x50°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
DALI DT8
Functions
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
4ch - 2ch - 1ch
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
36
Current
0,15A@230VAC
Materials
Ultra clear 12mm tempered glass
PMMA lenses
Aluminium alloy housing
Stainless steel AISI 304 flange
Marine Grade treatment
None
Yes
Tilt
Manual 0° 3° 6°
IP protection rating
67
IK grade protection
10
Operating temperature
-20°C +40*C
Sizes l x p x h (mm)
763 X 182 x 173 mm
Weight (Kgs)
xxx
Mounting systems
Inground
Colour finishing
None
