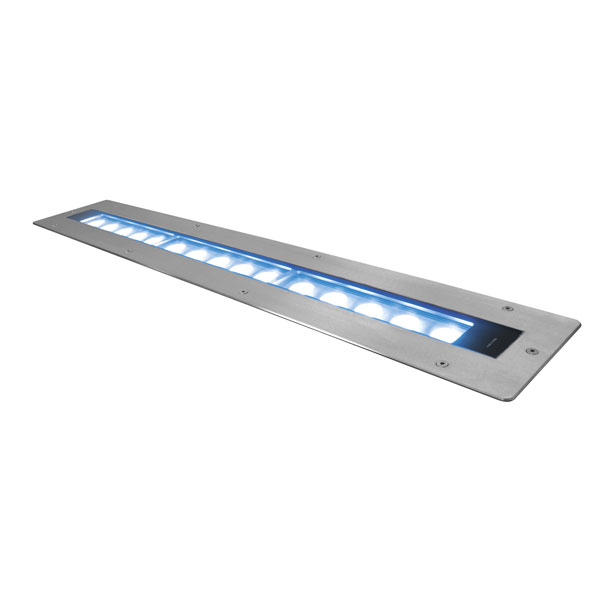

ARCHIBAR-i SL160 RGBW 90cm (it. 236114)
IP 67 RGBW inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Documents
IP 67 RGBW inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW TX-5050-10W |
| Lumen max source (lm) | 6900 |
| Red lumen (lm) | 1500 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 2700 |
| Number of LEDs | 15 |
| Blu lumen (lm) | 420 |
| White lumen (lm) | 2700 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 9ch - 6ch - 5ch - 4ch |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 65 |
| Current | 0,28A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Materials | Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange |
| Tilt | Manual 0° 3° 6° |
| IP protection rating | 67 |
| IK grade protection | 10 |
| Operating temperature | -20°C +40*C |
| Sizes l x p x h (mm) | 1063x182x173 mm |
| Mounting systems | Inground |
| Weight (Kgs) | 15 |
| Product Category | Inground |
| Others | |
|---|---|
| SLS-90 (art.900508) | No, Yes |
