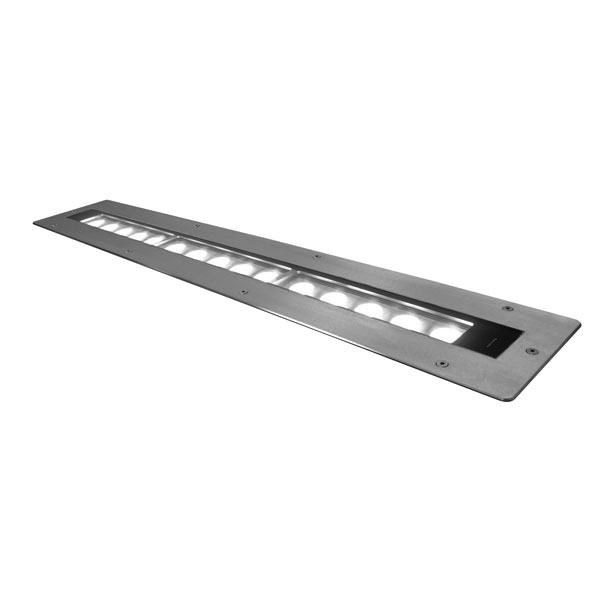

ARCHIBAR-i SL160 PLUG-IN M 90cm (it.236004)
Monochromatic IP 67 inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. N. 5 monochromatic LEDs. PLUG-IN version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Documents
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 15 |
| Lumen max source (lm) | 7500 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 1mt |
| Control | |
|---|---|
| Control type | Plug-in |
| Functions and Setup | |
|---|---|
| Functions | N/A |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 55 |
| Current | 0,23A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Materials | Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange |
| Operating temperature | -20°C +40*C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 1063 x182x173 |
| Mounting systems | Inground |
| Tilt | Manual 0° 3° 6° |
| Weight (Kgs) | 15 |
| Product Category | Inground |
| IK grade protection | 10 |
| Others | |
|---|---|
| SLS-90 (art.900508) | No, Yes |
