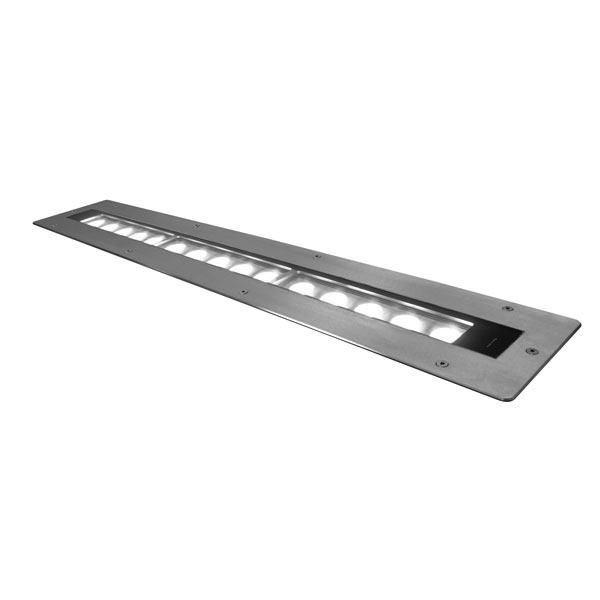

ARCHIBAR-i SL160 PLUG-IN M 90cm (it.236004)

https://www.studiodue.com/web/image/product.template/3389/image_1920?unique=5a91a4b

Monochromatic IP 67 inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. N. 5 monochromatic LEDs. PLUG-IN version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Marine Grade treatment
  • Product Category
  • SLS-90 (art.900508)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 15
Lumen max source (lm) 7500
Lenses 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt
Control type Plug-in
Functions N/A
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 55
Current 0,23A@230VAC
Materials Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 1063 x182x173
Weight (Kgs) 15
Mounting systems Inground
Product Category Inground
SLS-90 (art.900508) No, Yes
Contact Us


Monochromatic IP 67 inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. N. 5 monochromatic LEDs. PLUG-IN version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
