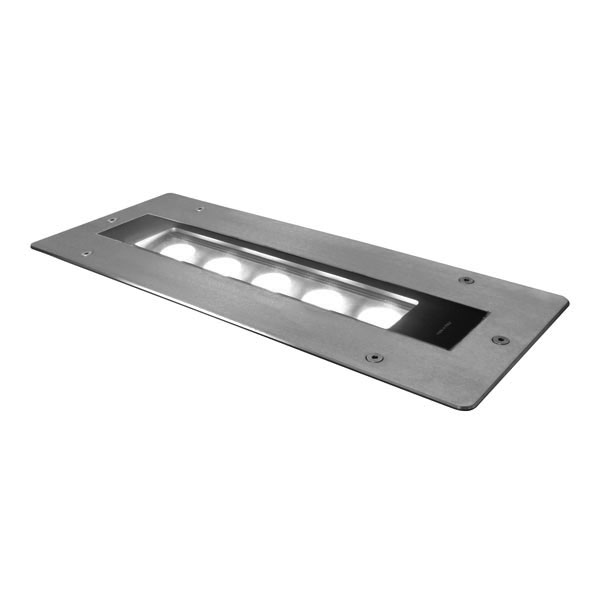

ARCHIBAR-i SL160 M 30cm (it.236011)

https://www.studiodue.com/web/image/product.template/3388/image_1920?unique=5a91a4b

Monochromatic IP 67 inground LED linear bar 30 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steelAISI 304 flange. Standard 90 cm. Dimmable version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Marine Grade treatment
  • Product Category
  • SLS-30 (art.900510)

This combination does not exist.

LED type WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 5
Lumen max source (lm) 2500
Lenses 4° , 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request), DALI DT6
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 3ch - 1ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 18
Current 0,07A@230VAC
Materials Ultra clear 12mm tempered glass, PMMA lenses, Aluminium alloy housing , Stainless steel AISI 304 flange
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Operating temperature -20°C +40*C
Sizes l x p x h (mm) 450 x 182 x 173
Weight (Kgs) xxx 1
Mounting systems Inground
Product Category Inground
SLS-30 (art.900510) No, Yes
