ARCHIBAR-i SL150 WB 90cm (it. 204214)

ARCHIBAR-i SL150 WB 90cm (it. 204214)

https://www.studiodue.com/web/image/product.template/256/image_1920?unique=5a91a4b

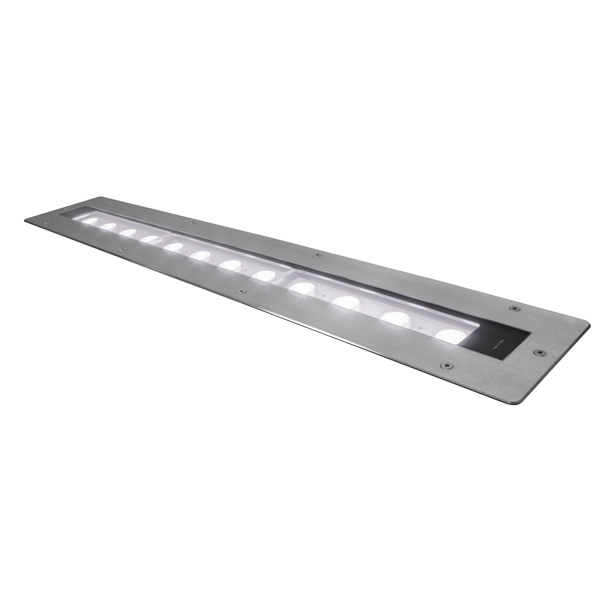

White balance IP 67 inground LED linear bar 90 cm long (standard). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. n.12 (2700K) +n. 12 (6500K) white LEDs. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Tilt
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 12 (2700K) ++ 12 (6500K)
Lumen max source (lm) 6000
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions RDM/DRS
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 50
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Sizes l x p x h (mm) 1063x182x173 mm
Weight (Kgs) 15
Mounting systems Inground
Colour finishing None
Product Category Inground
Contact Us


White balance IP 67 inground LED linear bar 90 cm long (standard). Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. n.12 (2700K) +n. 12 (6500K) white LEDs. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
