ARCHIBAR-i SL150 WB 30cm (it. 204211)

ARCHIBAR-i SL150 WB 30cm (it. 204211)

https://www.studiodue.com/web/image/product.template/254/image_1920?unique=5a91a4b

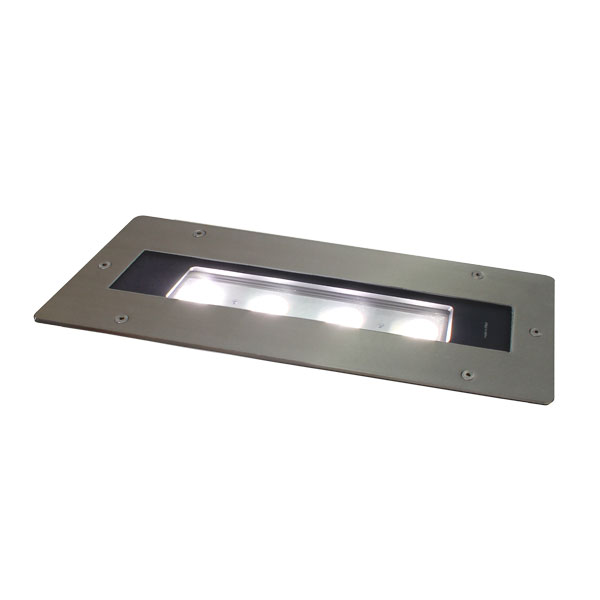

White Balance IP 67 inground LED linear bar 30 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Tilt
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • IK grade protection

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type CW+WW (5W)
Number of LEDs 4 (2700K) + 4 (6500K)
Lumen max source (lm) 2000
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions and Setup
Functions RDM/DRS
Power supply
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 25
Physical
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 450 x 182 x 173
Mounting systems Inground
Tilt Manual 0° 3° 6°
Weight (Kgs) xxx 1
Product Category Inground
Colour finishing None
IK grade protection 10
