Product Description

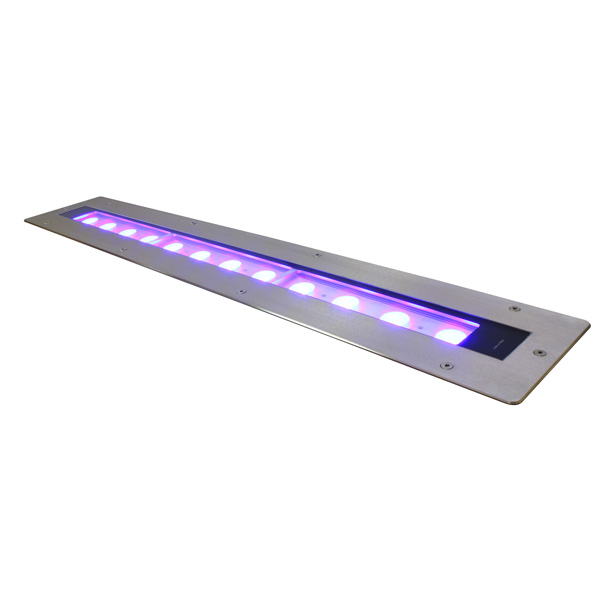

IP 67 RGBW inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.


Downloads

UM_AB SL150-i_inground_all.pdf

ART.204014 - ARCHIBAR-i SL 150 RGBW 90cm.zip
Technical specification
LED type
RGBW5050MULTICHIP
Number of LEDs
12
Lumen MAX
4150
Red lumen (lm)
750
Green lumen (lm)
1800
Blu lumen (lm)
250
White lumen (lm)
1600
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 17°
f 34°
f 60°
f 100°
f 8°x 60°
Connectors and cables
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
45 W
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
10
Sizes l x p x h (mm)
1063x182x173 mm
Weight (Kgs)
15
Mounting systems
Inground
Colour finishing
None
