Product Description

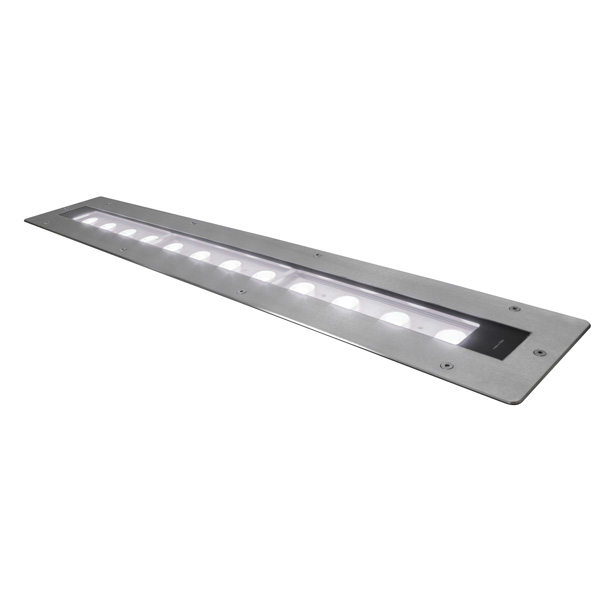

Monochromatic IP 67 inground LED linear bar. Profile in aluminium, sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. N. 24 monochromatic LEDs. PLUG-IN version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.



Downloads

UM_AB SL150-i_inground_all.pdf

ART.204104 - ARCHIBAR INGROUND MONO 90cm.zip
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
12
Lumen MAX
7500
Lenses
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3x1mm cable H07 1mt
Control type
Plug-in
Functions
N/A
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
45 W
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
10
Sizes l x p x h (mm)
1063 x182x173
Weight (Kgs)
15
Mounting systems
Inground
Colour finishing
None
