Product Description

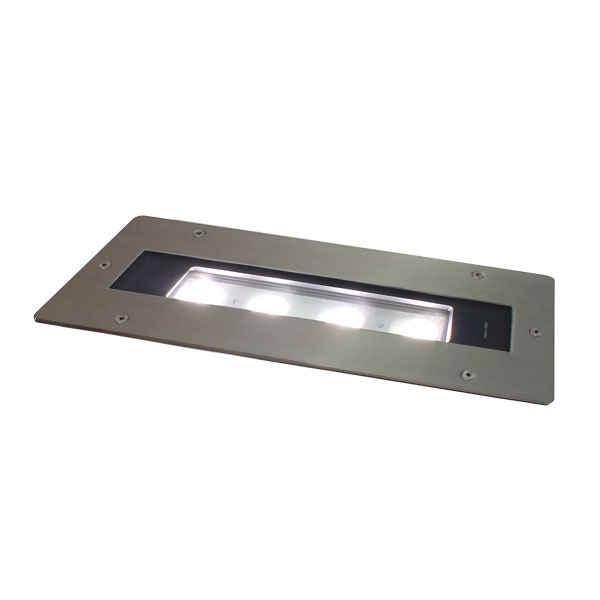

Monochromatic IP 67 inground LED linear bar 30 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steel AISI 304 flange. Standard 90 cm. PLUG-IN version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
4
|
Lumen MAX
|
2500
|
| Optics | |
Lenses
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 17°
f 34°
f 60°
f 100°
f 4° x 60°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H07 1mt
|
| Control | |
Control type
|
Plug-in
|
| Functions and Setup | |
Functions
|
N/A
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
15
|
| Physical | |
Marine Grade treatment
|
None
Yes
|
Tilt
|
Manual 0° 3° 6°
|
IP protection rating
|
67
|
IK grade protection
|
10
|
Sizes l x p x h (mm)
|
463 x 182 x 173 mm
|
Weight (Kgs)
|
xxx
|
Mounting systems
|
Inground
|
Colour finishing
|
None
|
