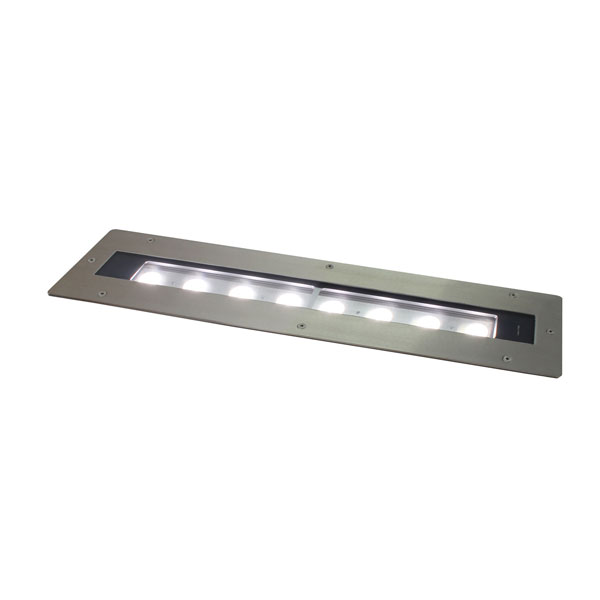

ARCHIBAR-i SL150 M 60cm (it. 204113)
Monochromatic IP67 inground LED linear bar 60 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Dimmable version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 16 |
| Lumen max source (lm) | 5000 |
| Optics | |
|---|---|
| Lenses | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 34 |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 763 x 182 x 173 |
| Mounting systems | Inground |
| Tilt | Manual 0° 3° 6° |
| Weight (Kgs) | xxx 1 |
| Product Category | Inground |
| Colour finishing | None |
| IK grade protection | 10 |
