ARCHIBAR-i SL150 M 60cm (it. 204113)

ARCHIBAR-i SL150 M 60cm (it. 204113)

https://www.studiodue.com/web/image/product.template/257/image_1920?unique=5a91a4b

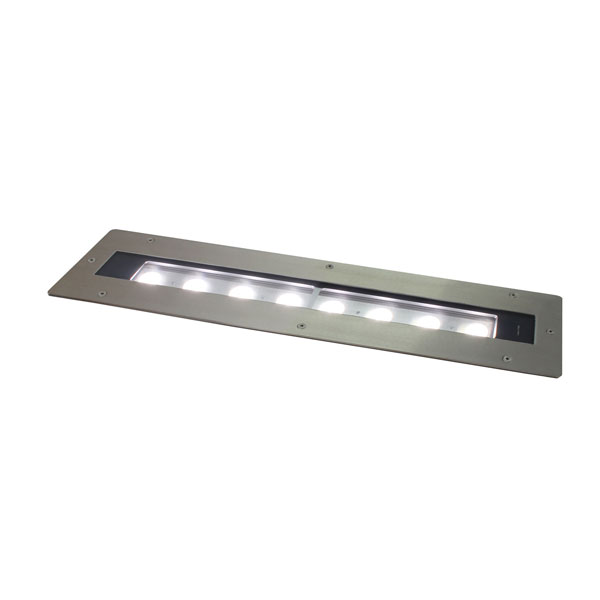

Monochromatic IP67 inground LED linear bar 60 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Dimmable version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.





Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Tilt
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 16
Lumen max source (lm) 5000
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Control type DMX - RDM, DMX - RDM + Wireless (on request), DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request)
Functions RDM/DRS
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 34
Marine Grade treatment None, Yes
Tilt Manual 0° 3° 6°
IP protection rating 67
IK grade protection 10
Sizes l x p x h (mm) 763 x 182 x 173
Weight (Kgs) xxx 1
Mounting systems Inground
Colour finishing None
Product Category Inground
Contact Us


Monochromatic IP67 inground LED linear bar 60 cm long (on request). Profile in aluminium, sturdy 12mm thick tempered glass, 3mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Dimmable version. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
