Product Description

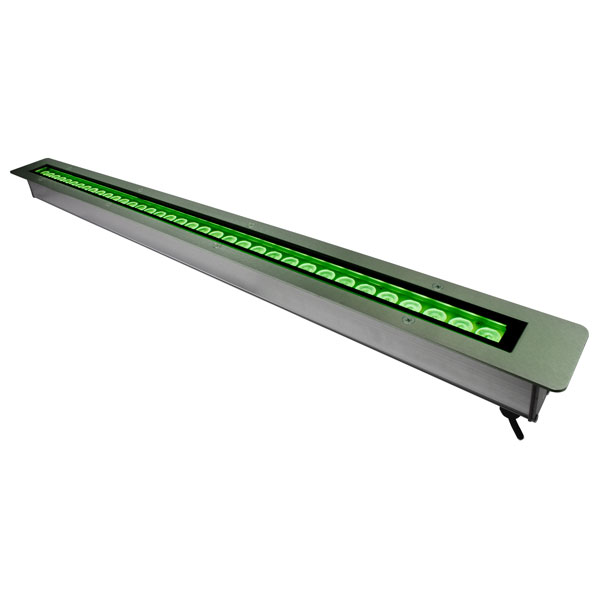

Compact IP 67 RGBW inground LED linear bar RDM-DMX. Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 3°.



Downloads

TD 232014 - ARCHIBAR-I-80 RGBW - 900mm.pdf
Technical specification
LED type
RGBW
Number of LEDs
33
LED expected lifetime (hrs)
50000
Lumen MAX
3180
Red lumen (lm)
660
Green lumen (lm)
1260
Blu lumen (lm)
242
White lumen (lm)
1260
Lenses
10°
10°x30°
10°x55°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
36
Current
150mA@230VAC
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
09
Sizes l x p x h (mm)
1015x84x70
Weight (Kgs)
3,8
Mounting systems
Inground
Colour finishing
None
