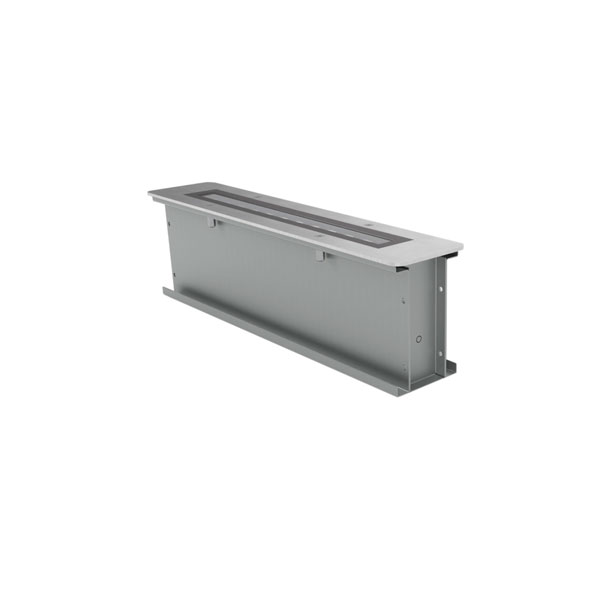

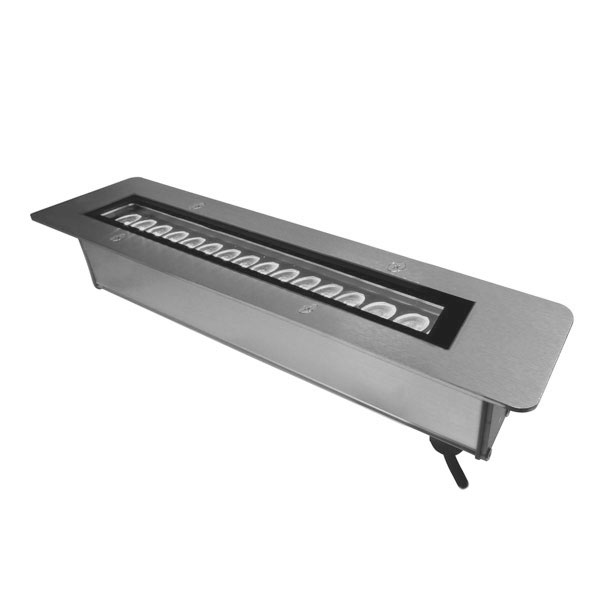

ARCHIBAR-i 80 M PLUG-IN 30cm (it.231001)

https://www.studiodue.com/web/image/product.template/2934/image_1920?unique=ec8ef0b

Compact IP 67 Monochromatic inground LED linear bar PLUG-IN version 30 cm long (on request). Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 8°.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • SL80-30 (art.900513)

This combination does not exist.

LED type WHITE 2900K, WHITE 4000K
Number of LEDs 12 Mid Power
LED expected lifetime (hrs) 90000
Lumen max source (lm) 1600
Lenses 5°, 10°, 10°x30°, 10°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Main Power: 3x1mm cable H07 1mt
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 12
Current 50mA@230VAC
Marine Grade treatment None, Yes
IP protection rating 67
IK grade protection 09
Sizes l x p x h (mm) 410x84x70
Weight (Kgs) 1,4
Mounting systems Inground
Colour finishing None
Product Category Inground
SL80-30 (art.900513) No, Yes
Contact Us


Compact IP 67 Monochromatic inground LED linear bar PLUG-IN version 30 cm long (on request). Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 8°.
