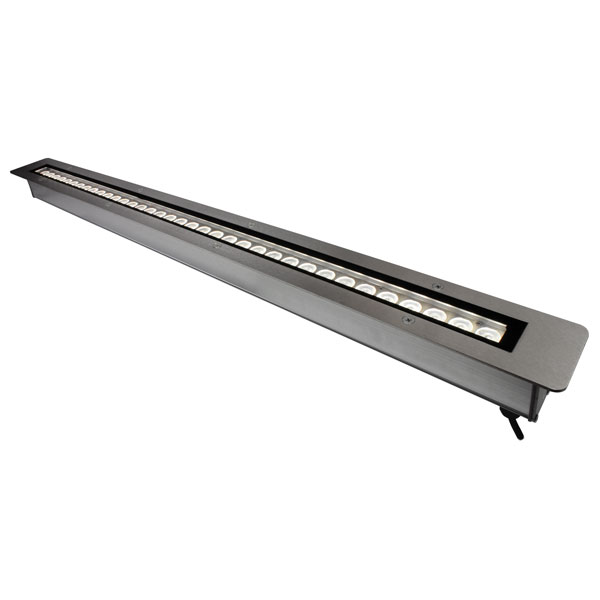

ARCHIBAR-i 80 M 90cm (it.231014)
Compact IP 67 Monochromatic inground LED linear bar RDM-DMX. Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 8°.
| LED type | WHITE 2900K, WHITE 4000K |
| Number of LEDs | 36 Mid Power |
| LED expected lifetime (hrs) | 90000 |
| Lumen max source (lm) | 4800 |
| Lenses | 5°, 10°, 10°x30°, 10°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connectors and cables | Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends |
| Control type | DMX - RDM |
| Functions | RDM/DRS |
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 33 |
| Current | 150mA@230VAC |
| Marine Grade treatment | None, Yes |
| IP protection rating | 67 |
| IK grade protection | 09 |
| Sizes l x p x h (mm) | 1015x84x70 |
| Weight (Kgs) | 3,8 |
| Mounting systems | Inground |
| Colour finishing | None |
| Product Category | Inground |
| SL80-90 (art.900511) | No, Yes |
Compact IP 67 Monochromatic inground LED linear bar RDM-DMX. Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 8°.
