ARCHIBAR-i 80 M 90cm (it.231014)

https://www.studiodue.com/web/image/product.template/2936/image_1920?unique=28feaa4

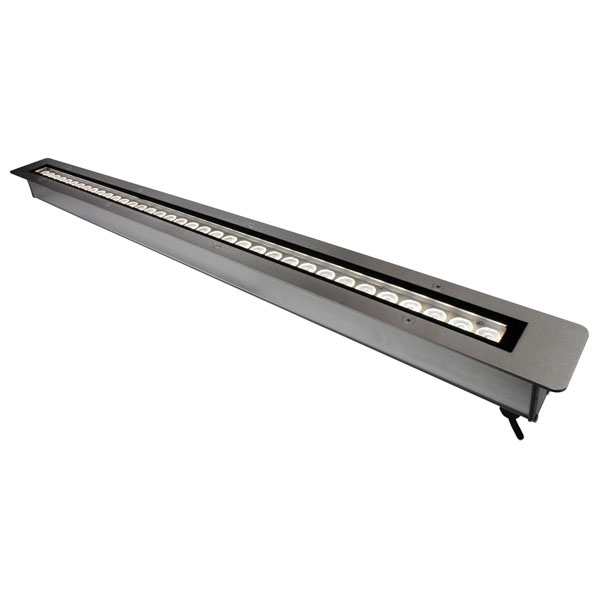

Compact IP 67 Monochromatic inground LED linear bar RDM-DMX. Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 8°.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • IK grade protection
  • SL80-90 (art.900511)

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type WHITE 2900K, WHITE 4000K
Number of LEDs 36 Mid Power
LED expected lifetime (hrs) 90000
Lumen max source (lm) 4800
Optics
Lenses 5°, 10°, 10°x30°, 10°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3x1mm cable H07 1mt, DMX signal: 1mt shielded cable bare ends
Control
Control type DMX - RDM
Functions and Setup
Functions RDM/DRS
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 33
Current 150mA@230VAC
Physical
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 1015x84x70
Mounting systems Inground
Weight (Kgs) 3,8
Product Category Inground
Colour finishing None
IK grade protection 09
Others
SL80-90 (art.900511) No, Yes
