ARCHI 40 RGBW (it. 170210)

ARCHI 40 RGBW (it. 170210)

https://www.studiodue.com/web/image/product.template/54/image_1920?unique=e753456

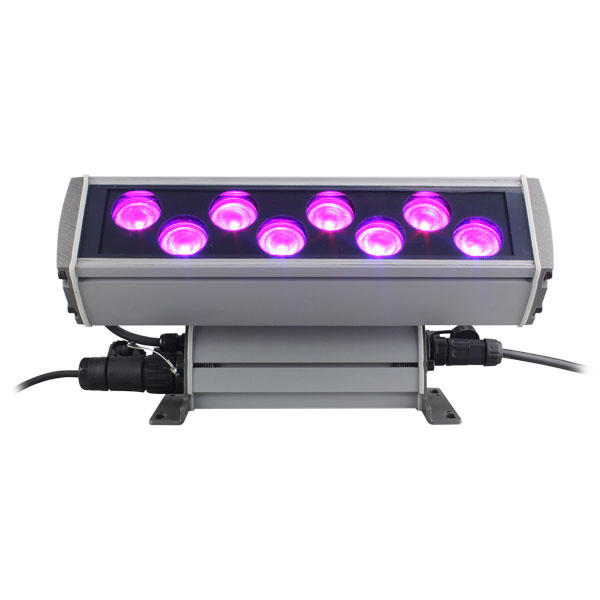

Compact LED floodlight colorchanger projector. 8 RGBW LEDs. 38 mm lenses. IP 67 protection rating.


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • Tilt
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Barn door

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 8
LED expected lifetime (hrs) 50000
Lumen max source (lm) 3500
Red lumen (lm) 480
Green lumen (lm) 1100
Blu lumen (lm) 160
White lumen (lm) 1000
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 45 W
Current 0,2A@230VAC
Inrush current 35A@230V
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 135°
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 325 x 140 x 153
Weight (Kgs) 2,6
Product Category Spot
Accessories - Barn door None, Yes
