ARCHI 40 RGBW (it. 170210)

ARCHI 40 RGBW (it. 170210)

https://www.studiodue.com/web/image/product.template/54/image_1920?unique=6a9eb2e

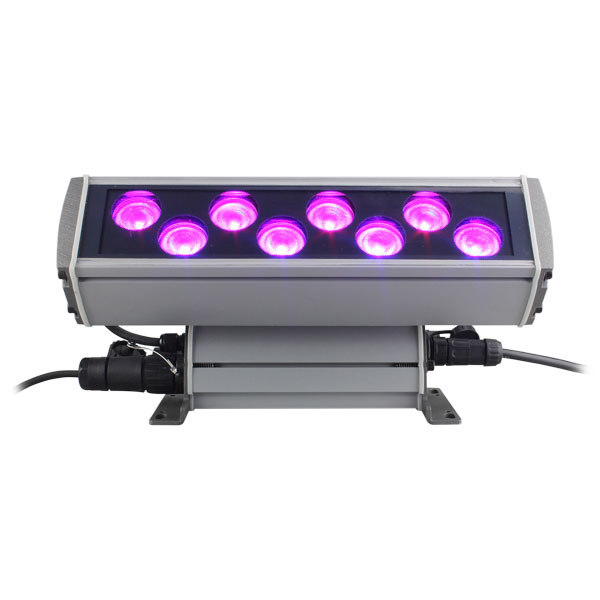

Compact LED floodlight colorchanger projector. 8 RGBW LEDs. 38 mm lenses. IP 67 protection rating.







Specifications

Lighting source
LED type RGBW5050MULTICHIP
Number of LEDs 8
LED expected lifetime (hrs) 50000
Lumen source (lm) 3500
Red lumen (lm) 480
Green lumen (lm) 1100
Blu lumen (lm) 160
White lumen (lm) 1000
Optics
Lenses 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female), DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 9ch - 6ch - 5ch - 4ch
Setup RDM/DRS
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 45
Inrush current 35A@230V
Current 0,2A@230VAC
Physical
Mounting systems Surface, Truss (optional)
_MARINE GRADE TREATMENT (art.900546) Standard finish, Marine grade treatment
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional), White RAL 9010 (optional), Any RAL (optional)
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 325 x 140 x 153
Tilt 135°
Weight (Kgs) 2,6
Product Category Spot
IP protection rating 67
Optional/Accessories
Accessories - Barn door None, Yes
