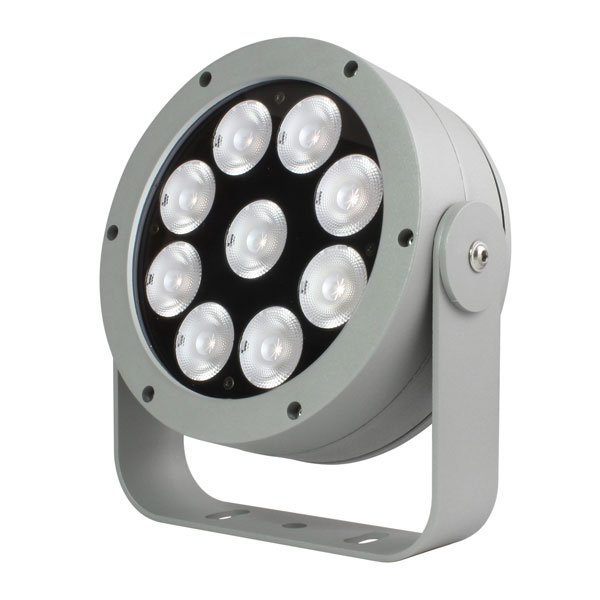

CLEVER SPOT 8 M RDM (it.250510)

CLEVER SPOT 8 M RDM (it.250510)

https://www.studiodue.com/web/image/product.template/4519/image_1920?unique=3c092fa

 Medium version of the CLEVER SPOT series with 9 High Power Monochromatic LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lumen max output (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • CLAMP/C (art.900516)
  • SAFETY WIRE/C (art.900523)
  • CLEVER SPOT2-SN (art.900206)
  • CLEVER SPOT2-CL (art.900306)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 9
LED expected lifetime (hrs) 50000
Lumen max source (lm) 4000
Lumen max output (lm) 2930
Lenses 5°, 10°x30°, 12°, 15°x55°, 24°, 30°x10°, 55°x15°, 36°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: cable 3x0,75mm, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
DMX channels 3ch - 1ch
Input range 120 - 240 VAC; 47/63 Hz
Power max (W) 26
Current 0,13A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) , Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Tilt 360°
IP protection rating 67
IK grade protection 07
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 210 x 70 x 215
Weight (Kgs) 2,2
Product Category Spot
CLAMP/C (art.900516) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
CLEVER SPOT2-SN (art.900206) No, Yes
CLEVER SPOT2-CL (art.900306) No, Yes
Contact Us


 Medium version of the CLEVER SPOT series with 9 High Power Monochromatic LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
