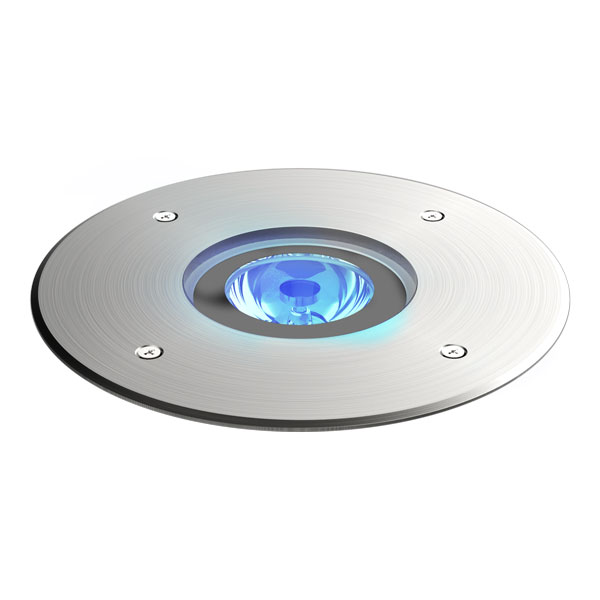

M-TERRA TL1/316SS POB RGBW RDM (it. 232610)

• LED type
  • RGBW 20W FLAT
• Number of LEDs
  • 1
• LED expected lifetime (hrs)
  • 50000
• Lumen max source (lm)
  • 320
• Red lumen (lm)
  • 56
• Green lumen (lm)
  • 112
• Blu lumen (lm)
  • 22
• White lumen (lm)
  • 160
• CRI
  • >80
• Lenses
  • 40°
  • 60°
• Filters (optional)
  • None
  • Elliptical projection filter 60° x n° (n° = native lens) horizontal
  • Elliptical projection filter n° x 60° (n° = native lens) vertical
• Connectors and cables
  • 1.5mt 3x0.75mm power cable, 1.5mt 2x0.35mm+shield DMX signal cable
• Control type
  • DMX - RDM
• Functions
  • Dedicated DMX channel for white balance from 2000K to 10000K
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Continuous dimming 0-100%
  • Smooth dimming function
  • Halogen simulation
  • CYM simulation
  • Flicker-free function
• Setup
  • RDM/DRS
• DMX channels
  • 9ch - 5ch - 4ch
• Input range
  • 100 - 277 VAC; 47/63 Hz
• Power max (W)
  • 6
• Current
  • 30mA@230VAC
• Inrush current
  • 40A@230V
• IP protection rating
  • 68 (not for immersion)
• IK grade protection
  • 09
• Operating temperature
  • -30°C +45°C
• Sizes l x p x h (mm)
  • 140x140x90
• Weight (Kgs)
  • 1.5
• Materials
  • Ultra clear 10mm tempered glass
  • PMMA lenses
  • All in stainless steel AISI316
• Mounting systems
  • Inground
• Colour finishing
• Marine Grade treatment
  • Yes
• Product Category
  • Inground
• Plastic Case TL-1 (art.900547)
  • No
  • Yes
