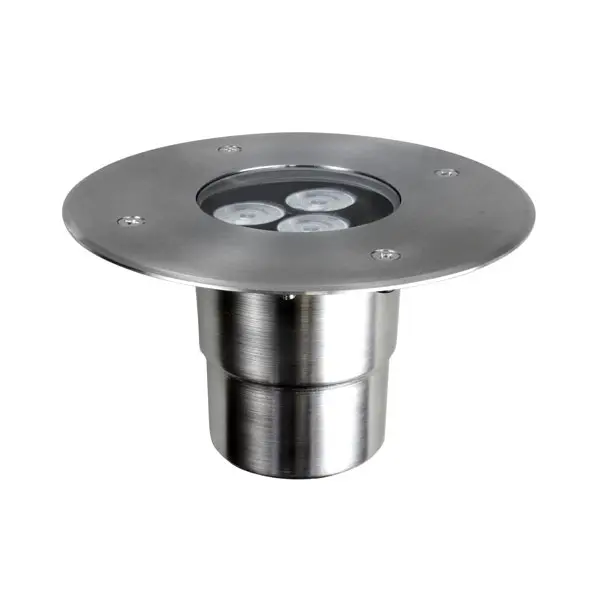

M-TERRA WTL1/316SS 24V PLUG-IN (it. 232400)
Small inground fixture (24V) with 1 Monochromatic LED made entirely of AISI 316 steel with IP68 protection rating not for immersion. Plug-in version. Suitable for outdoor installation.
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K |
| Number of LEDs | 1 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 500 |
| CRI | >70 (on request >80, >90) |
| Lenses | 10°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connectors and cables | 1.5mt 3x0.75mm cable |
| Input range | 24VDC (15VDC-50VDC) |
| Power max (W) | 5 |
| Current | 220mA@24VDC |
| Materials | Ultra clear 10mm tempered glass, PMMA lenses, All in stainless steel AISI316 |
| IP protection rating | 68 (not for immersion) |
| IK grade protection | 09 |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 140x140x90 |
| Weight (Kgs) | 1,5 |
| Mounting systems | Inground |
| Colour finishing | AISI 316 brushed |
| Marine Grade treatment | Yes |
| Product Category | Inground |
| Plastic Case TL-1 (art.900547) | No, Yes |
Small inground fixture (24V) with 1 Monochromatic LED made entirely of AISI 316 steel with IP68 protection rating not for immersion. Plug-in version. Suitable for outdoor installation.
