Descrizione prodotto

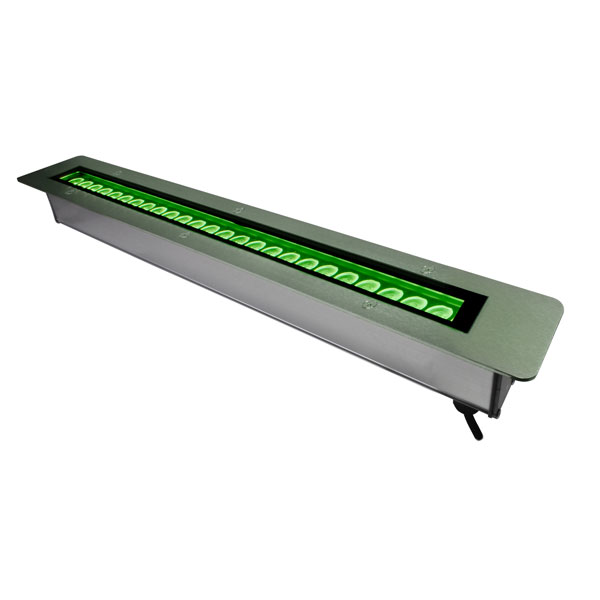

Compact IP 67 RGBW inground LED linear bar RDM-DMX 60 cm long (on request). Profile in aluminium, sturdy 6 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at 3°.


Downloads
Specifiche tecniche
LED type
RGBW
Number of LEDs
22
LED expected lifetime (hrs)
50000
Lumen MAX
2120
Red lumen (lm)
440
Green lumen (lm)
840
Blu lumen (lm)
162
White lumen (lm)
840
Lenses
10°
10°x30°
10°x55°
25°
40°
60°
Filters
None
f 100°
Connectors and cables
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
28
Current
130mA@230VAC
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
09
Sizes l x p x h (mm)
715x84x70
Weight (Kgs)
2,8
Mounting systems
Inground
Colour finishing
None
