COMPACT 52 RGBW (it. 230010)

COMPACT 52 RGBW (it. 230010)

https://www.studiodue.com/web/image/product.template/2891/image_1920?unique=255230d

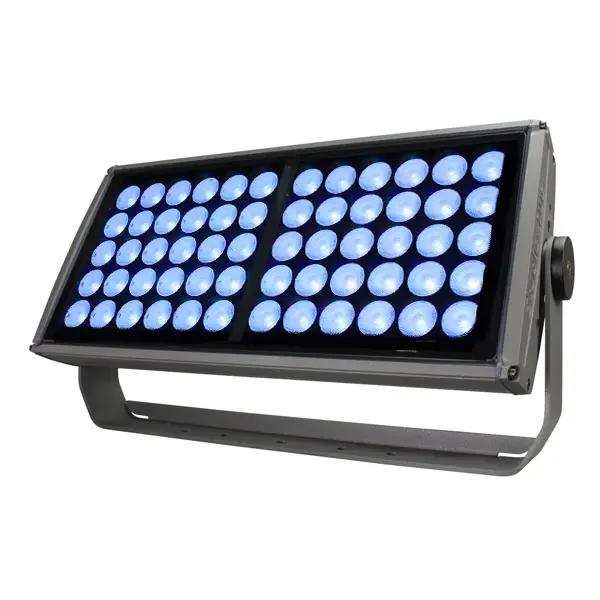

Compact long distance LED lighting Hi Power RGBW IP67 colorchanger. 60 powerful RGBW LEDs, 38mm lenses

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • 563-BD (art.900104)
  • 563-AG (art.900004)
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)
  • 563LED-FROST (art.900411)

This combination does not exist.

LED type RGBW (8W)
Number of LEDs 60
LED expected lifetime (hrs) 50000
Lumen max source (lm) 23000
Red lumen (lm) 5000
Green lumen (lm) 8800
Blu lumen (lm) 1600
White lumen (lm) 9000
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1,5mm cable, DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 220
Current 0,9A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Graphite gray, Metal grey 7011 (optional), White RAL 9010 (optional), Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 640 x 120 x 320
Weight (Kgs) 14
Product Category Wall Washer
563-BD (art.900104) No, Yes
563-AG (art.900004) No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
563LED-FROST (art.900411) No, Yes
Contact Us


Compact long distance LED lighting Hi Power RGBW IP67 colorchanger. 60 powerful RGBW LEDs, 38mm lenses
