External PSU

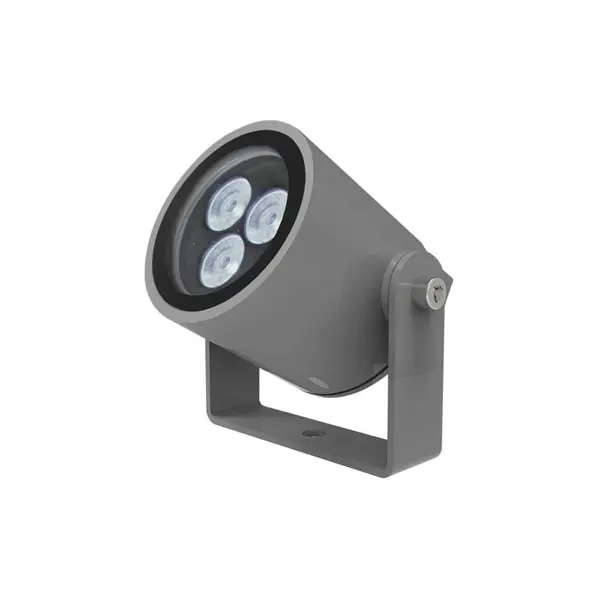

DOT M 24V RDM connectors (it. 221440)
Piccolo faretto Monocromatico LED professionale IP67 a 24V con DMX a bordo e alimentazione esterna, nato per creare effetti decorativi e installazioni architettoniche. Versione con cavo ibrido e connettori IN/OUT.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 3 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 900 |
| CRI | >70 (on request >80, >90) |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Power cable 3x0.75mm + DMX signal cable 3x0.3mm |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| DMX channels | 3ch - 1ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 24VDC (8VDC-30VDC) |
| Power max (W) | 9 |
| Current | 420mA@24VDC |
| Physical | |
|---|---|
| Marine Grade treatment | None, Yes |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Operating temperature | -30°C +45°C |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 105x70x115 |
| Mounting systems | Surface |
| Tilt | 270° |
| Weight (Kgs) | 0.8 |
| IK grade protection | 08 |
