Descrizione prodotto

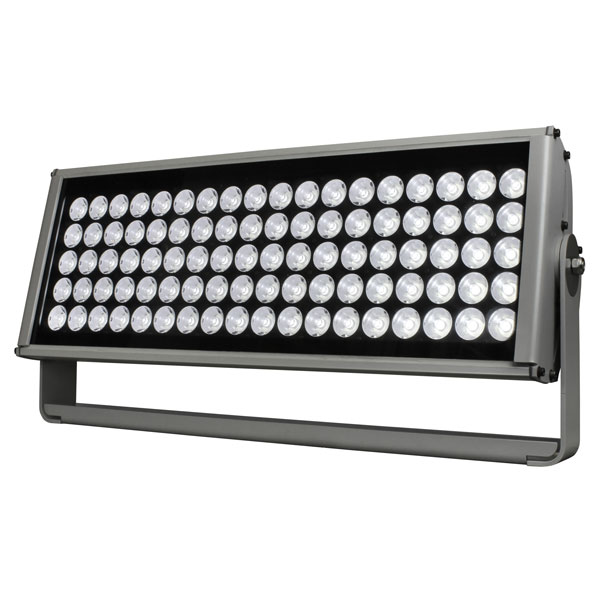

Powerful IP 67 Led lighting floodlight for accurate light distribution. On board power supply. Plug-in version.
Downloads
Specifiche tecniche
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
BIANCO 5600K
WHITE 6500K
|
Number of LEDs
|
90
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
50000 (@6500K - lens 4°)
|
CRI
|
>70 (on request >80, >90)
|
Efficiency
|
150lm/W (light source), 130lm/W (fixture)
|
| Optics | |
Lenses
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 30°
f 80°
f 100°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
|
| Control | |
Control type
|
Plug-in
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
390
|
Current
|
0,45A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
180°
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
770 x 160 x 340
|
Weight (Kgs)
|
17
|
