TERRA L5 24V RGBW (it. 210160)

TERRA L5 24V RGBW (it. 210160)

https://www.studiodue.com/web/image/product.template/1295/image_1920?unique=5a91a4b

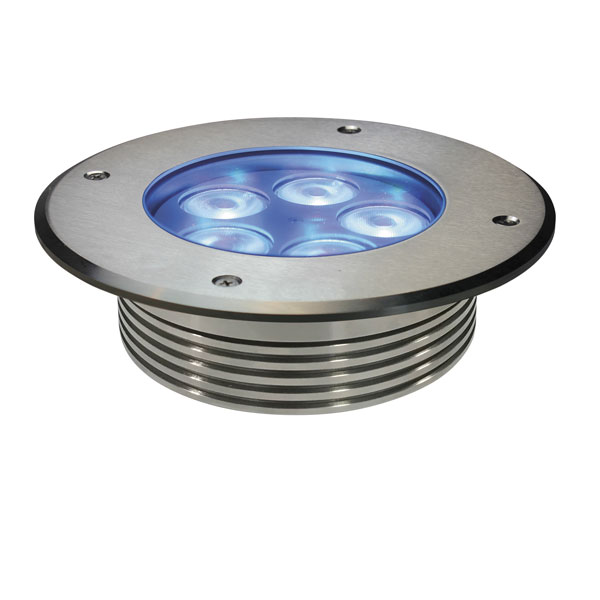

20V-48V version with DMX on board and external power supply. IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n.5 x 10W RGBW LEDs.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • LED expected lifetime (hrs)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Materials
  • Case
  • FILTER-SING 105-W (art.900419)
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • PS 1 TERRA-ARIA (art.552170)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • Plastic Case TER (art.900537)

This combination does not exist.

Contact Us


20V-48V version with DMX on board and external power supply. IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n.5 x 10W RGBW LEDs.

Specifications

Lighting source
LED type RGBW5050MULTICHIP
Lumen max source (lm) 1815
Red lumen (lm) 330
LED expected lifetime (hrs) 50000
Green lumen (lm) 770
Number of LEDs 5
Blu lumen (lm) 110
White lumen (lm) 715
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical, Filter f65° frost
Connections
Connectors and cables Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
Control
Control type DMX - RDM
Functions and Setup
Functions Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS
DMX channels 9ch - 6ch - 5ch - 4ch
Power supply
Input range CV 20 - 48 VDC
Power max (W) 18
Current 0,75A@24VDC
Physical
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
IK grade protection 08
Mounting systems Inground
Weight (Kgs) 2,7
Dimensions d x h (mm) 190 x 52,5
Product Category Inground
Finishings
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
Others
FILTER-SING 105-W (art.900419) No, Yes
FILTER-SING 105 (art.900420) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
PS 1 TERRA-ARIA (art.552170) No, Yes
PS 10 TERRA-ARIA (art. 550170) No, Yes
PS 4 TERRA-ARIA (art.551170) No, Yes
Plastic Case TER (art.900537) No, Yes
