Product Description

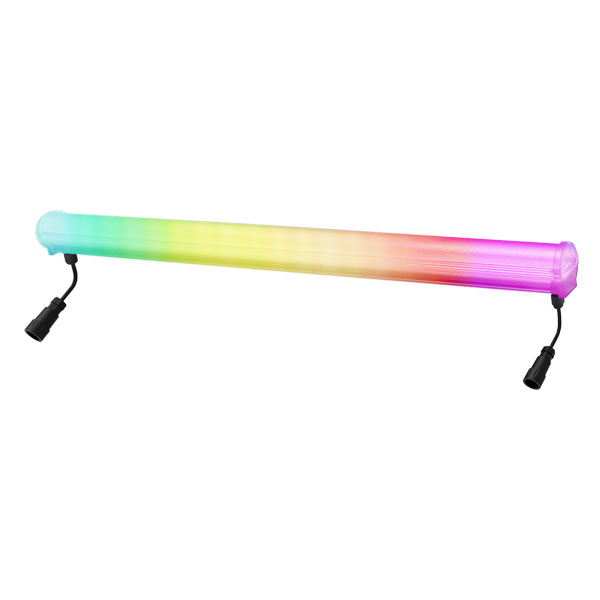

LED LINEAR TUBE di piccolissime dimensioni lungo 50cm (a richiesta) con grado di protezione IP 67. Adatto all’illuminazione architetturale, effetti visivi pixel e giochi di luce. 20 single pixel a controllo individuale per mt per ottenere effetti sorprendenti. Standard 100cm. Struttura in alluminio e tubo in PMMA. Per controllare COLORFLOW IC utilizzare SPI Power box Driver. A richiesta: staffa per regolazione -/+78°. A richiesta 150cm.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGB
|
Number of LEDs
|
60
|
Red lumen (lm)
|
100
|
Green lumen (lm)
|
265
|
Blu lumen (lm)
|
65
|
| Optics | |
Lenses
|
180°
|
| Control | |
Control type
|
SPI POWER BOX Driver
|
| Power supply | |
Power max (W)
|
15
|
Current
|
0,32A@48VDC
|
| Physical | |
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
510 x 46
|
Weight (Kgs)
|
0,7
|
Mounting systems
|
Surface
|
Colour finishing
|
None
|
Marine Grade treatment
|
None
|
