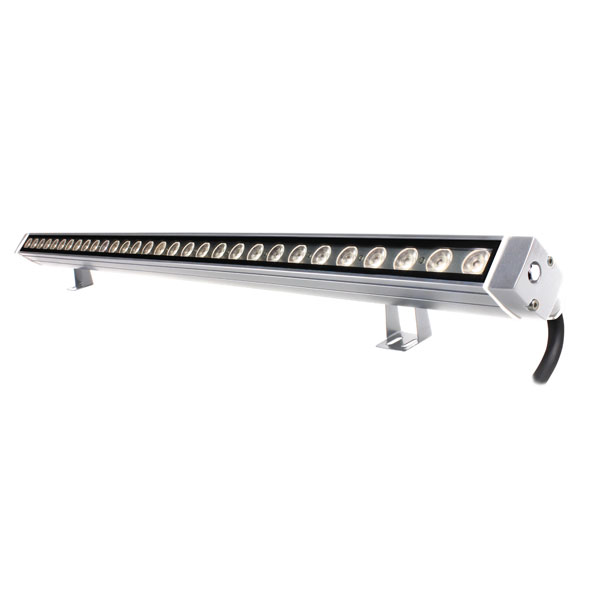

SLIMBAR PLUS POB W 100 cm (it. 201315)

https://www.studiodue.com/web/image/product.template/195/image_1920?unique=5a91a4b

Ultra small form factor LED linear bar with n.28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50cm (n.14 neutral white LEDs) also available. Dimmable version

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Daisy chain Power+DMX (max n. fixture)
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type BIANCO 2900K high efficiency mid power, BIANCO 4000K high efficiency mid power
Number of LEDs 30
Lumen max source (lm) 4000
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions RDM/DRS
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 34
Daisy chain Power+DMX (max n. fixture) 16
Mounting systems Surface, Truss (optional)
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 1005 x40 x 60 mm
Weight (Kgs) 2
Colour finishing Anodized light grey
Marine Grade treatment None
Product Category Linear Bar
Contact Us


Ultra small form factor LED linear bar with n.28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50cm (n.14 neutral white LEDs) also available. Dimmable version
