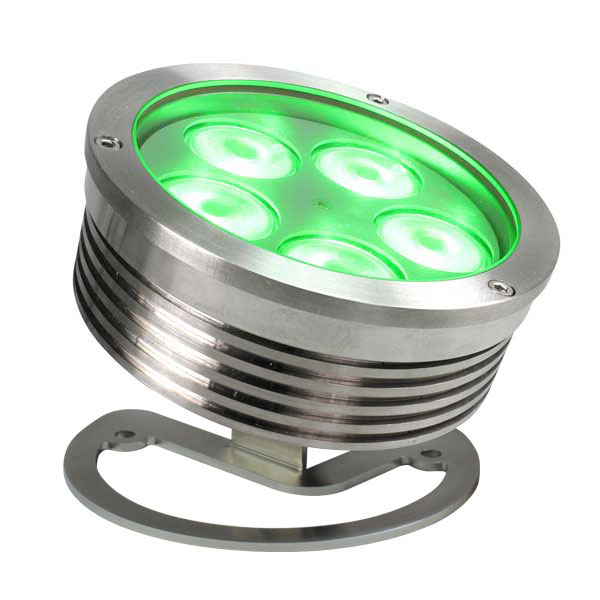

ARIA-L5 RGBW (it.143410)

ARIA-L5 RGBW (it.143410)

https://www.studiodue.com/web/image/product.template/1319/image_1920?unique=5a91a4b

IP 67 protection rating, it includes n. 5 x 10W RGBW/FC LEDs standard optic. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations. External Control Driver.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • IK grade protection
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • MD BOX 17V (art. 500170)
  • CONTROL BOX IC5 17V (art.510170)
  • CD 10 TER RGBW-M (art.531170)
  • CD 4 TER RGBW-M (art.553170)
  • CD 1 TER RGBW-M (art.537170)
  • FILTER-SING 105-W (art.900419)
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 5
LED expected lifetime (hrs) 50000
Lumen max source (lm) 1500
Red lumen (lm) 330
Green lumen (lm) 770
Blu lumen (lm) 110
White lumen (lm) 715
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Filter f65° frost
Connectors and cables Driver cable (4x0,5mm + 1x1mm - 1,5mt)
Connettori e cavi (optional) Cable: type and length (optional)
Functions Control Driver esterno
Input range 17 VDC
Power max (W) 18
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
Mounting systems Surface, Truss (optional)
IK grade protection 08
Dimensions d x h (mm) 134 x 108,5
Weight (Kgs) 2,5
Product Category Spot
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
MD BOX 17V (art. 500170) No, Yes
CONTROL BOX IC5 17V (art.510170) No, Yes
CD 10 TER RGBW-M (art.531170) No, Yes
CD 4 TER RGBW-M (art.553170) No, Yes
CD 1 TER RGBW-M (art.537170) No, Yes
FILTER-SING 105-W (art.900419) No, Yes
FILTER-SING 105 (art.900420) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
