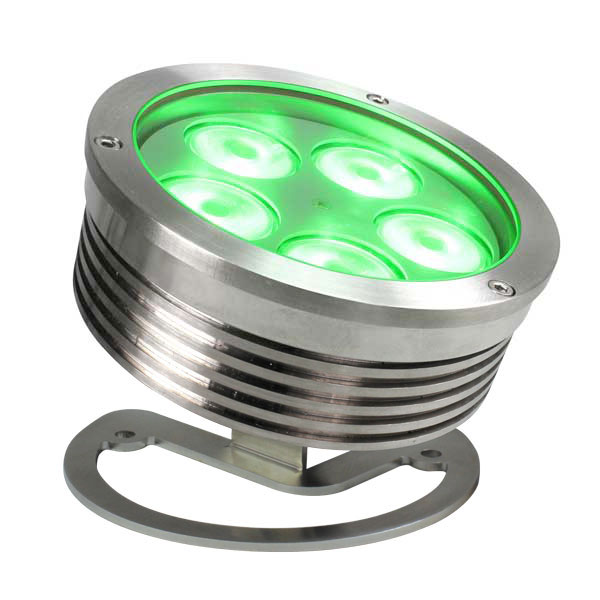

ARIA-L5 RGBW (it.143410)
IP 67 protection rating, it includes n. 5 x 10W RGBW/FC LEDs standard optic. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations. External Control Driver.
Documents
IP 67 protection rating, it includes n. 5 x 10W RGBW/FC LEDs standard optic. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations. External Control Driver.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Lumen max source (lm) | 1500 |
| Red lumen (lm) | 330 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 770 |
| Number of LEDs | 5 |
| Blu lumen (lm) | 110 |
| White lumen (lm) | 715 |
| Optics | |
|---|---|
| Lenses | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Filter f65° frost |
| Connections | |
|---|---|
| Connectors and cables | Driver cable (4x0,5mm + 1x1mm - 1,5mt) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Functions and Setup | |
|---|---|
| Functions | Control Driver esterno |
| Power supply | |
|---|---|
| Input range | 17 VDC |
| Power max (W) | 18 |
| Physical | |
|---|---|
| IP protection rating | 67, 68 optional |
| Mounting systems | Surface, Truss (optional) |
| Materials | Ultra clear 10mm tempered glass, All in stainless steel AISI304 |
| IK grade protection | 08 |
| Weight (Kgs) | 2,5 |
| Dimensions d x h (mm) | 134 x 108,5 |
| Product Category | Spot |
| Finishings | |
|---|---|
| Case | AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional) |
| Others | |
|---|---|
| MD BOX 17V (art. 500170) | No, Yes |
| CONTROL BOX IC5 17V (art.510170) | No, Yes |
| CD 10 TER RGBW-M (art.531170) | No, Yes |
| CD 4 TER RGBW-M (art.553170) | No, Yes |
| CD 1 TER RGBW-M (art.537170) | No, Yes |
| FILTER-SING 105-W (art.900419) | No, Yes |
| FILTER-SING 105 (art.900420) | No, Yes |
| FILTER-DOUB 105 (art.900421) | No, Yes |
