Descrizione prodotto

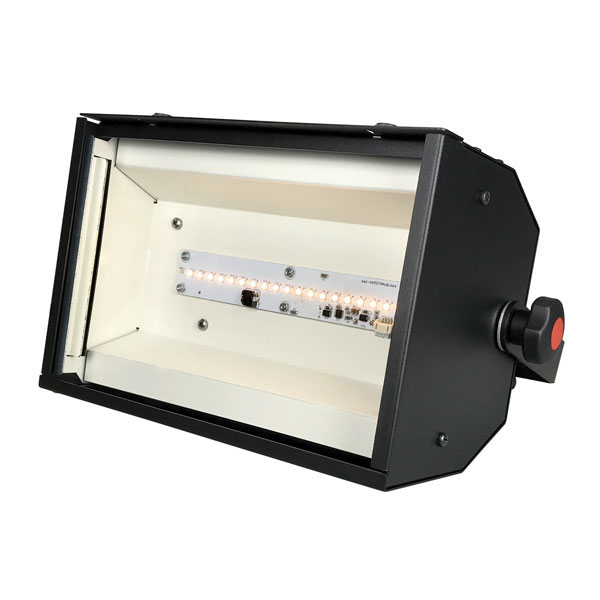

Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.

ACCESSORIES:


- it. 900535 MARINE GRADE TREATMENT

Downloads

UM_Theatre_series.pdf
Specifiche tecniche
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6000K
RED
GREEN
BLUE
AMBER
Number of LEDs
19 LEDS 2700K 90CRI
Lumen MAX
6000
Lenses
110° no lens
Control type
DMX - RDM
Functions
RDM/DRS
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
80
Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
IP protection rating
20
Sizes l x p x h (mm)
285 x 225 x 175
Weight (Kgs)
3
Marine Grade treatment
None
